high-pressure fitting / screw-in / straight / elbow
DynaVariacor MID - VARIACOR

{{requestButtons}}

Characteristics

  • Attachment:

    screw-in

  • Configuration:

    straight, elbow

  • Applications:

    hydraulic

  • Material:

    stainless steel, steel, aluminum

  • Other characteristics:

    high-pressure, swivel

  • Gender:

    male-female, female-female, male-male

  • Diameter:

    Min.: 4 mm

    6 mm

    Max.: 11 mm

  • Operating pressure:

    Min.: 0 bar (0 psi)

    250 bar (3,625.94 psi)

    Max.: 630 bar (9,137.38 psi)

Description

This high pressure pipe, manufactured by DynaVariacor, provides smooth passage of fluid without reducing diameter from inlet to outlet. The rotating joint enables the passage of air, water, glue, paint, oil, resin, gel coat, hydrocarbon and solvents. Its stability provides comfort and minimizes costs by eliminating supply hose early wear.

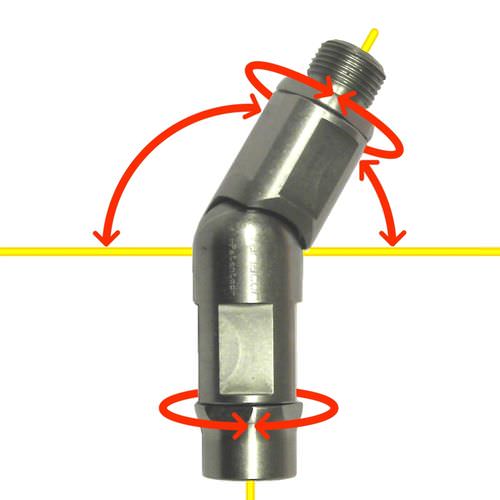

The freely adjustable patented DynaVariacor® coupling makes all high pressure hoses flexible and manageable: various hydraulic equipment, airless spray guns:
Placed between the pipe and the equipment, it reduces the forces, increases the maneuverability and avoids the inadvertent kinking of the hose (Ideal for the works in the cramped places, it improves the ergonomics of the workstations).
The passage section inside the connection remains constant regardless of its angular position, so the pressure drops are lower and do not affect the fluid flow. The connection remains flexible even up to its maximum operating pressure. This innovative system is made of Aluminum or Stainless Steel with a wide variety of seal materials adapted to the transferred products. Available in many configurations and threads: BSP, NPT, Metric ...
