spherical fitting / screw-in / straight / elbow
DynaVariacor MID - VARIACOR

{{requestButtons}}

Characteristics

  • Attachment:

    screw-in

  • Configuration:

    straight, elbow

  • Applications:

    hydraulic, for vacuum, for compressed air

  • Other characteristics:

    swivel, sealed, orientable, transfer, rotating, spherical, for fuel, all-fluid, filling

  • Gender:

    male-female, female-female, male-male

  • Diameter:

    Min.: 7 mm

    16 mm, 25 mm

    Max.: 65 mm

  • Operating pressure:

    Min.: 0 bar (0 psi)

    16 bar (232.06 psi)

    Max.: 25 bar (362.59 psi)

Description

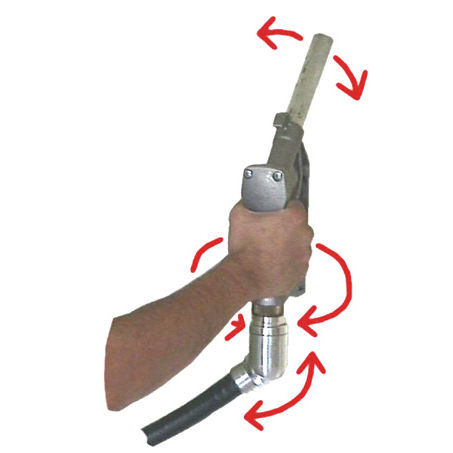

Ball joint for filling gun

The patented, freely adjustable DynaVariacor® coupling makes all filling guns flexible and manageable, regardless of hose type, pressure or fluid. Placed between the gun and the pipe, it reduces the forces, increases the maneuverability of the gun and avoids the inadvertent kinking of the hose. Thus the positioning, the introduction and the removal of the gun are simplified. The transfer of fluid is facilitated regardless of the position of the filling orifice. In addition, this coupling improves the uniform aging of the pipe by lesser deformations. Flow rates are optimal, whatever the angle of the connection, the diameter of passage is constant. This system exists in several sizes and connections, all types of threading: BSP, NPT, Metric ... These connections can carry all types of fluids such as: water, fuel oil, gasoline, solvent, air, alcohol, paint ....
