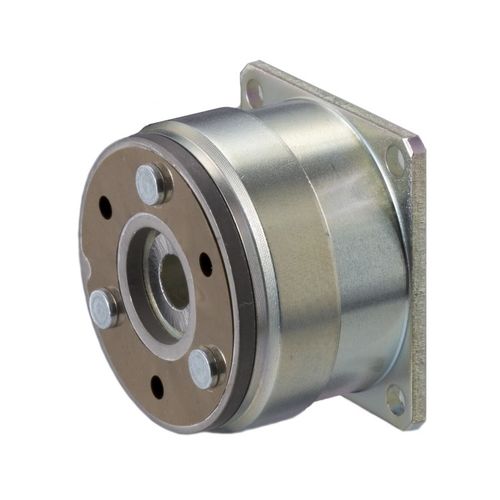

Friction clutch and brake 102 series
electromagneticzero-backlashflange-mounted

friction clutch and brake
friction clutch and brake
friction clutch and brake
Add to favorites
Compare this product


Characteristics

Type
friction
Operation
electromagnetic
Other characteristics
zero-backlash, flange-mounted
Torque

0.4 Nm, 0.6 Nm, 1.2 Nm, 2.4 Nm
(0.295 ft.lb, 0.4425 ft.lb, 0.8851 ft.lb, 1.7701 ft.lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 10,000 rpm
(62,831.85 rad.min-1)

Description

The micro clutch 102 impresses with its compactness and switching speed. By combining with three types of armature assemblies with different mounting options, the desired mounting option can easily be selected. - 3 Armatures available - RoHS compliant - Zero Backlash
