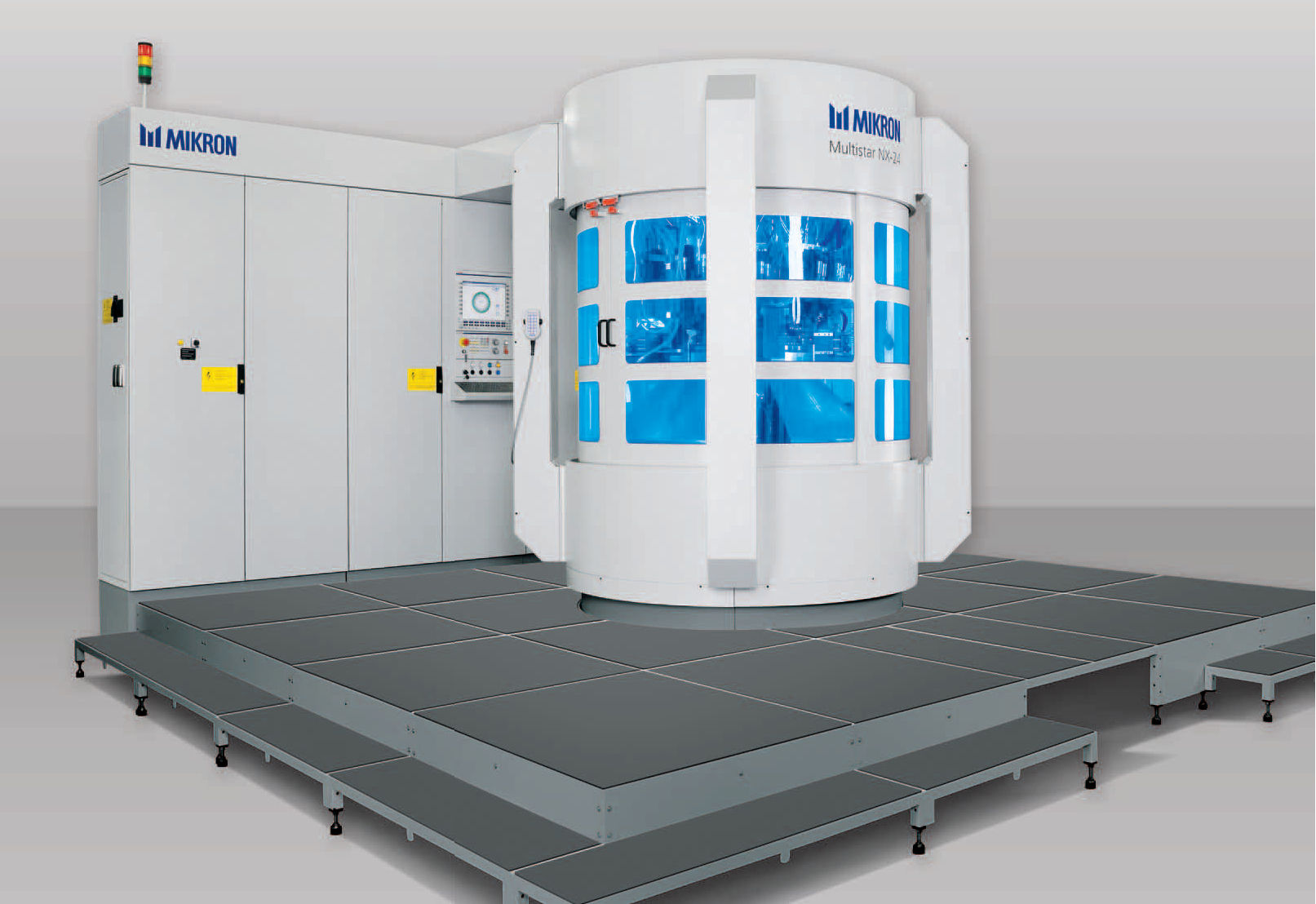

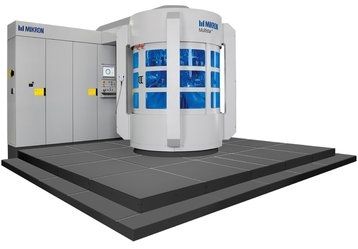

Rotary transfer machine Multistar NX-24

CNC24-positionprogrammable

What makes the Mikron Multistar NX-24 rotary transfer machine stand out? Its flexibility and precision for high volume CNC machining. The Mikron Multistar NX-24 is designed for batch production of hundreds to thousands of highly complex and precise CNC machining parts with unbeatable cost efficiency. It offers full CNC flexibility, ultra-fast cycle times, and industry-leading repeatability — making it a perfect choice for manufacturers seeking precision CNC machining parts in a wide range of industries such as automotive, watchmaking, medical, air conditioning and gas. The machine processes materials such as alloy steel, brass, titanium or aluminum – with maximum dimensions of Ø 35mm and maximum lengths of up to 65mm. Key benefits of the Mikron Multistar NX-24 Productivity for high volume CNC machining Up to 30 parts per minute 24 CNC workstations with up to 44 machining units working simultaneously Fast-indexing rotary table for minimal idle time Simultaneous machining from multiple angles: top, bottom, side, or inclined Full CNC flexibility & easy changeover 100% programmable and 100% versatile machining axes All axes are electronically controlled for quick changeover Various machining operations such as: Drilling, reaming, tapping, threading Milling with up to 4 axis interpolation Turning, grooving, recessing Deep hole drilling and 3D deburring Others e.g. measuring, washing, assembly Precision CNC machining at its best Rigid, compact and thermally stable design ±2.5µm table position repeatability High precision clamping collets High tech Mikron spindles In process gauging; tool and clamping compensation Automatic out of tolerance part separation
