Wedge welding machine T300 Extreme Travel

hot airautomaticfor steel

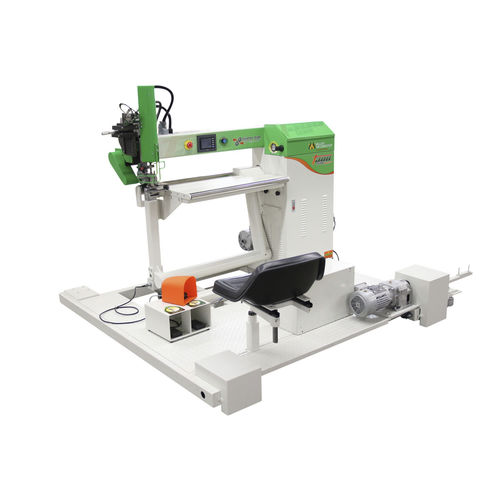

Efficient, Traveling TARP WELDER The Miller Weldmaster T300 Extreme Traveling welding machine uses a T300 welding machine and puts it on a platform that moves along a track allowing easier material handling for the operator and alleviating the weight of a long heavy piece of fabric. This hot air and hot wedge welding machine will make life easier for your employees by making large jobs easier to handle. Hot Air Welding Applications: •Woven Polypropylene •Woven Polyethylene •PVC Laminate •PVC Coated •Polyurethane Coated •Polypropylene •Acrylic +More... Hot Wedge Welding Applications: •Woven Polypropylene •Woven Polyethylene •PVC Laminate •PVC Coated •Polyurethane Coated •Polypropylene +More... Technical Specification Power Requirements: 208-240 Volts - Single Phase - 25 Amperes 380-400 Volts - Single Phase - 16 Amperes Power Consumption: 6Kw Air Requirements: 100 PSI @ 2 CFM Maximum Temperature: Hot Air: 730OC - Hot Wedge: 450OC Throat Width: 0.83m Dimensions: Width: 0.76m Length: 1.65m Height: 0.76m Weight: Approx. 231KG/510LB Seam Width: 0.012 - 0.05m** Welding Cycle: Up to 30m/min (100ft/min) FEATURES & BENEFITS 1.Easy operation touch screen and 25 memory settings. 2.Easy to use for any operator. 3.Quick, repeatable, precision head adjustments. 4.Available in hot air, hot wedge or equipped with both for product versatility. 5.Quick, easy guide change for multiple seam configurations.
