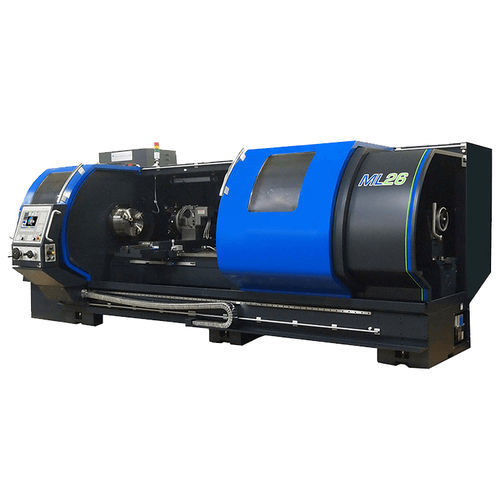

CNC turning machine ML26/160
2-axis

CNC turning machine
CNC turning machine
CNC turning machine
CNC turning machine
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Diameter

27 in

Spindle speed

Min.: 30 rpm
(188.496 rad.min-1)

Max.: 1,600 rpm
(10,053.096 rad.min-1)

Axe X

13 in

Axe Z

163 in

Nominal power

15 ch, 24 ch
(15 hp, 24 hp)

Overall lenght

101 in

Overall width

248 in

Overall height

83 in

Description

With 160” length, 27” swing and 6.02” bore, this large toolroom lathe tackles big work. Featuring a 24 hp spindle motor, 1,600 rpm and achieves 1,250 ft lbs. of torque. Standard with an 8 station electro-mechanical turret. Options include chucks and chip conveyor. Standard Features 15-inch LCD color display Solid model graphic display 120 GB program storage memory DXF file import Networking 35 mm linear way technology Automatic lubrication Spindle load meter Flood coolant with enclosure Thread chasing feature (most models) 500 IPM rapid traverse rate LCD hour meter One year warranty Add-on Options 10 or 14 in bore options for ML35 and ML40 Live tooling option for ML22 and larger lathes Lift-up chip conveyor Additional tool holders Hydraulic quill for tailstock (most models) Bi-directional turning cycle Pneumatic 5C collet closer (ML16) Additional spare “M” functions Automatic tool turrets Tool posts Steady rest Follow rest Digital Setup Assistant Milltronics Shop View
