Oleodynamic press BV 26 E

assemblytestdie-spotting

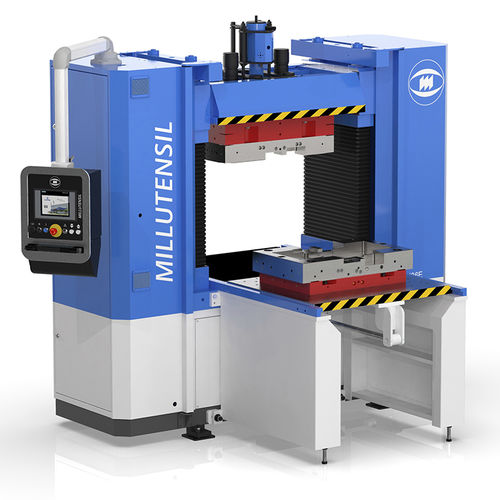

Entry level-version for small and medium size moulds. BV 26 E is the advanced version with a hydraulic system controlled by electronic servo proportional valves and a control of parallelism through Heidenhain optical lines. BV 26 E is monitored through Siemens PLC commanded by Touch Panel. Platen dimensions are 980×750 mm (38X29 inches). The max. clamping force is 300kN. The max. load capacity on lower plate is 4.000 kg, while on the upper is 1.200 kg. Similar to the rest of the E, the BV 26 E series is offered with option -R, -G or -RG version and can also be equipped with all optional accessories. Lower plate Hydraulic cylinders drive the lower extensible plate outside the columns in an easily accessible position for the work outside the press. It slides on roller bearings and is laterally guided by ball bearings, completely friction- and wear-free. Lower plate tilting by 75° or 90° only available on the E series Thanks to 2 hydraulic cylinders, the lower plate can be tilted up to 75° or 90°, on the short back side, to operate on the mould at an ergonomically better position. Tilting movements (and automatic locking) are controlled by the touch panel. The plate can be placed at any angle, giving the operator optimal access to the mould, with no need to bend, maximum comfort and safety. In the final position, the plate comes down and is held by 4 hydraulic cylinders, thus completely leaning on specific ground support bands. The system guarantees high repeatability accuracy equal to ± 0,04 mm.
