oscillating mini booster / oil
HC2 miniBOOSTER

Add to MyDirectIndustry favorites

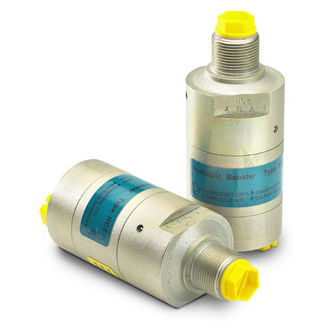

oscillating mini booster / oil oscillating mini booster / oil - HC2
{{requestButtons}}

Characteristics

  • Technology:

    oscillating

  • Media:

    oil

  • Pressure:

    Min.: 20 bar (290 psi)

    Max.: 207 bar (3,002 psi)

Description

Description

The HC2 is a compact unit weighing only 1.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The HC2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

Functions

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves KV1, KV2 and DV to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function.

When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
