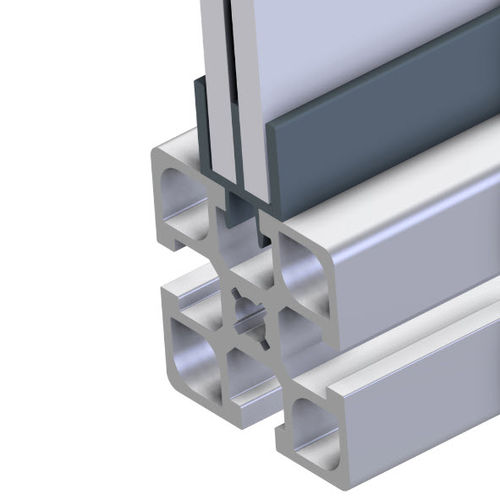

PVC profile 22.1073/1groovedguideextruded
Add to favorites
Compare this product
Characteristics
- Material
- PVC
- Configuration
- grooved
- Applications
- guide
- Other characteristics
- extruded
- Width
20 mm
(0.8 in)- Height
18 mm
(0.7 in)
Description
Techn. Data / Items supplied
PVC, extruded, grey
Upon request, also available in black, Art. no. 22.1073/0
weight = 0.270 kg/m
bar length = 2 m
Applications
2-fold sliding window made of panel elements up to 6 mm thick
Assembly
Press into profile groove
Suitable for subsequent mounting
Install round rods for the subsequent mounting of panel elements in the grooves of the lower guide profile Art. no.. 22.1077/0
Determination of dimensions for panel elements for subsequent mounting: Light height- 20 mm, further light height - 10 mm
