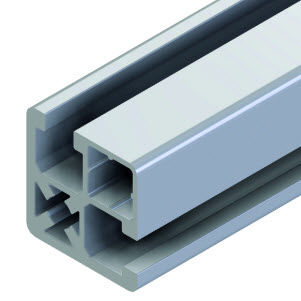

Aluminum profile 20.1064/0groovedfor sliding doors
Add to favorites
Compare this product
Characteristics
- Material
- aluminum
- Configuration
- grooved
- Applications
- for sliding doors
- Width
32 mm
(1.3 in)- Height
32 mm
(1.3 in)
Description
Techn. Data / Items supplied
• - Aluminium, extruded, anodized E6/EV1
• - Ix = 4.1 cm4
• - Iy = 4.1 cm4
• - wx = 2.267 cm3
• - wy = 2.267 cm3
• - Weight = 1.052 kg/m
• - Bar length = 6 m
• - Packing unit = 48 m
Applications
• - Weight-optimized constructions
• - End table
• - Swivel, lifting and sliding doors
• - Bracings
Assembly
• - MiniTec power-lock fastener
• - Mounting angle 19 GD-Z, part no. 21.2078/0
• - Bolt connector
• - Screw connection
Catalogs
MiniTec Profile System
612 Pages
