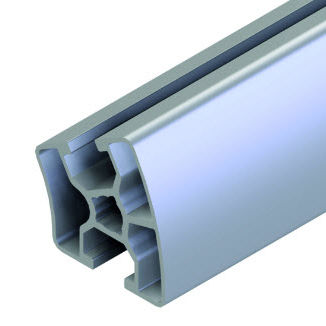

Aluminum profile 20.1134/0

groovedroundindustrial

Techn. Data / Items supplied • - Aluminium, extruded, anodized E6/EV1 • - Ix = 1.939 cm4 • - Iy = 1.909 cm4 • - wx = 0.982 cm3 • - wy = 1.006 cm3 • - Weight = 0.601 kg/m • - Bar length = 6 m • - Packing unit = 72 m Applications • - Weight optimized constructions • - Tables • - Framework constructions • - display windows, showcases • - As cross beam: Calculate dimension L of the intermediate support according to calculating formula Assembly • - Power-lock fastener 30 / N 30 • - Mitre connector 30 • - Screw connection 30 • - Angle 16 / 30 • - Attaching accessories with sliding nut 30 M4 / M5 / M6 / M8
