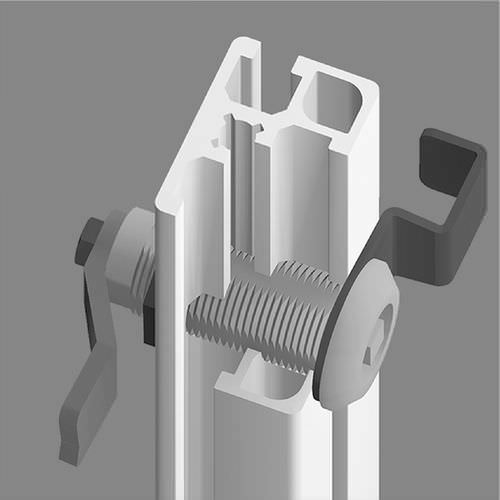

Cam latch 21.1087/6

steel

Techn. Data / Items supplied Zinc, Pressure die-casting, chromed With fastening nut steel, galvanized 2 keys Without locks Weight = 0.100 kg/piece Applications Light doors from surface elements up to 8 mm thickness Assembly Bore Ø 22 mm in panel element As an alternative to torsion-protected mounting Milling according to sketch Select the locking tongue suitable for the application or profiles used. To prevent damage to the profile grooves, additional edging and cover profiles can be used.
