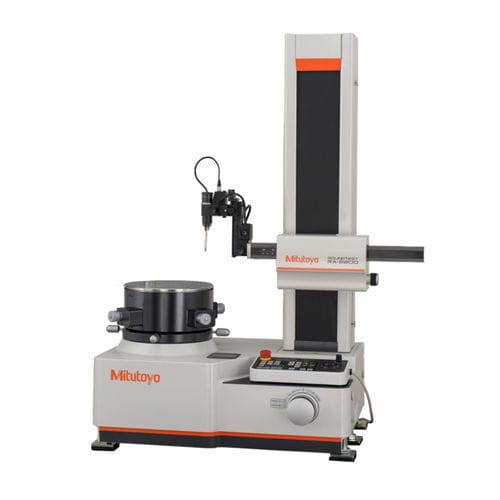

Shape measuring system Roundtest RA-2200
automatic

shape measuring system
shape measuring system
Add to favorites
Compare this product


Characteristics

Measured physical value
shape
Other characteristics
automatic

Description

This is a highly accurate form measuring system which allows you to measure roundform geometry like cylindricity. The Roundtest RA-2200 offers the following benefits: •It has fully motorised axes movement. •Its extremely high turntable accuracy of (0.02+0.00035H) µm gives you excellent form analysis. •The user friendly software, ROUNDPAK, gives you easy drag and drop usage and a wide range of parameters. •ROUNDPAK also has easy-to-use part programming and single measurement functions. •A huge number of styli provides you with maximum flexibility. •There is an auto follow function for easy and quick pre-centering of the workpiece. There is a wide variety of models available to suit any application. RA-2200DS/DH: These models have a navigation function supplied as standard, to quickly and simply guides you through the centering and leveling task. The models are equipped with the D.A.T. (Digital Adjustment Table). RA-2200AS/AH: The models have an automatic centering and leveling turntable supplied as standard , freeing you from the centering and leveling task. The models are equipped with the A.A.T. (Automatic Adjustment Table).
