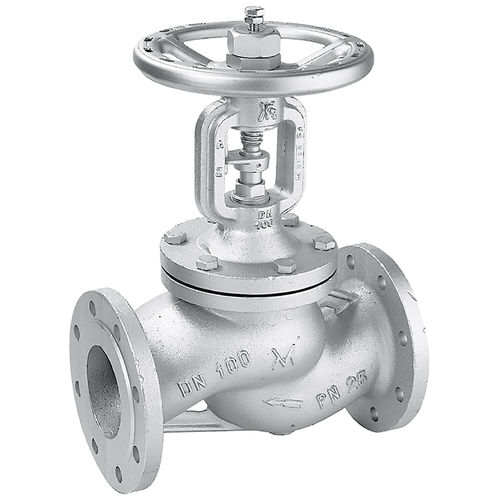

Valve with bellows seal 63 series
globewith handwheelflow control

valve with bellows seal
valve with bellows seal
Add to favorites
Compare this product


Characteristics

Type
globe
Operation
with handwheel
Function
flow control
Media
for hot water, for oil, for air, for steam
Body
flange, stainless steel, carbon steel, cast iron, graphite
Applications
for heating systems, for tank, for boiler
Other characteristics
standard, locking, with bellows seal
DN

Min.: 15 mm
(0.591 in)

Max.: 200 mm
(7.874 in)

Pressure

Min.: 17.5 bar
(253.8 psi)

Max.: 25 bar
(362.6 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 350 °C
(662 °F)

Flow rate

Min.: 5 m³/h
(176.57 ft³/h)

Max.: 664 m³/h
(23,448.94 ft³/h)

Description

Streamlined flow valves, Streamlined flow valves bellows type, Streamlined flow valves bellows type on nodular cast iron PN 25 (EN-GJS-400-18-LT) Outside screw streamlined flow valve series PN 25. Maintenance free. EN-GJS-400-18-LT cast iron body and yoke. Stainless steel stem, bellows and sealing seats. Graphite + stainless steel gaskets. Carbon steel handwheel. The valve is standard provided by: position indicatori, safety backseat on the stem, rise limiter, lubricator, locking set screw. Connection flanges dressed and drilled according to EN 1092-2 PN 25 with rised face.

Catalogs

No catalogs are available for this product.

See all of Mival‘s catalogs
