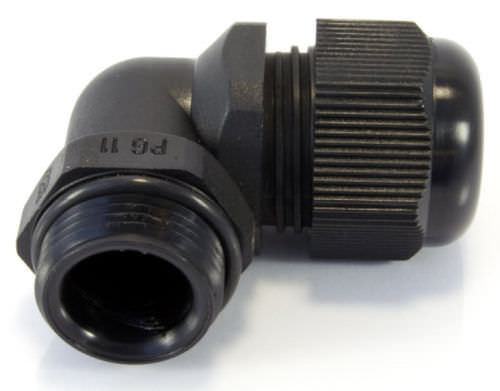

polyamide cable gland / IP68 / elbow
BWSP series Moltec International

{{requestButtons}}

Characteristics

  • Material:

    polyamide

  • Protection level:

    IP68

  • Other characteristics:

    elbow

  • Cable diameter:

    Max.: 28 mm

    Min.: 4 mm

  • Operating temperature:

    Max.: 100 °C (212 °F)

    Min.: -20 °C (-4 °F)

Description

Configuration
Dome nut: Polyamide PA6 V-2
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR
Gland body: Polyamide PA6 V-2
Connecting thread: Pg as per DIN 40430

Properties
For application in installation areas with small amounts of
space due to construction dimensions, integrated anchorage,
wide sealing and clamping range.
Temperature range: -20°C / +100°C
Protection grade: IP68 - 5 bar
