Infrared sensor IRS series

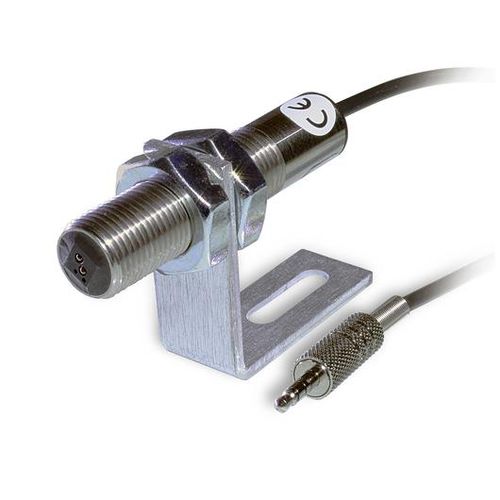

Both the IRS-P and IRS-W Infrared Optical Sensors are proven to be reliable high-speed sensors with a range of 1-1,000,000 RPM! With a working range of 12 mm, these sensors are ideal for very high-speed equipment or an application providing contrasting light and dark surfaces. The Infrared Optical Sensor has an invisible infrared light source that is ideal for working up to 0.5 in. [12.7 mm] from high-speed equipment or other applications providing only contrasting light and dark surfaces or beam interruption by solid objects as small as 0.039 in. [1 mm]. The sensor is housed in a threaded 303 stainless steel tube and supplied with a 90-degree angle aluminum-mounting bracket and two M16 jam nuts. The IRS is supplied with an 8 ft. [2.4 m] cable terminated with a 1/8 in. [3.5 mm] male stereo plug (IRS-P) or 4 tinned wires (IRS-W). An optional 25 ft. [7.6 mm] extension cable EC-25P is available with a female socket for the plug on one end, and a 1/8 in. [3.5 mm] male stereo plug on the other.
