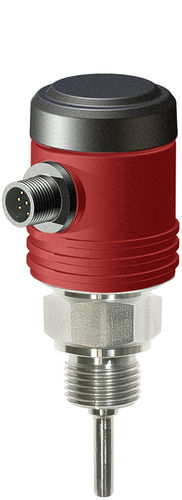

RTD temperature transmitter MSTS-WTPt100HARTprocess
Add to favorites
Compare this product
Characteristics
- Input type
- RTD, Pt100
- Output signal
- HART
- Applications
- process
Description
The temperature transmitter MSTS-WT is equipped with one 4-20 mA analog output (2-wire) and offers as interface, an optional HART modem. It comes with a sensor tube length of up to 1000 mm, protection class IP65 (Electronic completely potted) and offers 8 different kind of electrical connections. Whereby as process connection, the following types are possible: 1/4", 3/8", 1/2", 3/4", 1", 1/4 NPT, 3/8 NPT and 1/2 NPT.
The housing and the cover are made of PBT GF30 and the process connection is made of 1.4571 stainless steel.
