Linear vibrating screener Chip-Pacs

for powders

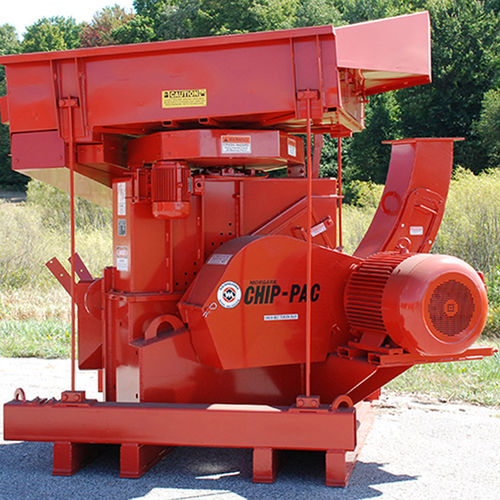

combines chipping, screening and chip loading into one self-contained package. Morbark chip screens are proven high-capacity machines that separate overs and fines from acceptable chips. With a rugged Morbark chipper at its heart, the Chip-Pac, available in 48" and 58" (121.9 cm and 147.3 cm) sizes, is extensively used to sawmill waste. Chip-Pacs are available with a 10-hp (7.5 kW), 30-hp (22.4 kW) or 40-hp (29.8 kW) chip blower, plus an optional 3-hp (2.2 kW) fines blower. 48" (121.9 CM) CHIP-PAC SPECIFICATIONS - ------------------------- 48" (121.9 CM) CHIP-PAC POWER - 75-hp to 150-hp electric or diesel, 55-9 kW - 111.8 kW 48" (121.9 CM) CHIP-PAC CAPACITY - 11", 27.9 cm Diameter 48" (121.9 CM) CHIP-PAC WEIGHT - 11,200 lb, 5080 kg 48" (121.9 CM) CHIP-PAC WIDTH - 76", 193 cm 48" (121.9 CM) CHIP-PAC DEPTH - 70", 177.8 cm 48" (121.9 CM) CHIP-PAC HEIGHT - 92", 233.7 cm 48" (121.9 CM) CHIP-PAC SPACE REQUIRED - 23" - 110", 58.4 cm - 279.4 cm 48" (121.9 CM) CHIP-PAC SCREEN - 5' x 5' (1.5 m x 1.5 m) with 2-hp (1.5 kW) hydraulic or electric drive 48" (121.9 CM) CHIP-PAC FOUNDATION - Cement slab 58" (147.3 CM) CHIP-PAC SPECIFICATIONS - ------------------------- 58" (147.3 CM) CHIP-PAC POWER - 75-hp to 250-hp electric or diesel, 55-9 kW - 186.4 kW 58" (147.3 CM) CHIP-PAC CAPACITY - 15", 38.1 cm Diameter 58" (147.3 CM) CHIP-PAC WEIGHT - 15,640 lb, 7094 kg 58" (147.3 CM) CHIP-PAC WIDTH - 88", 223.5 cm 58" (147.3 CM) CHIP-PAC DEPTH - 87", 221 cm 58" (147.3 CM) CHIP-PAC HEIGHT - 146", 380.4 cm 58" (147.3 CM) CHIP-PAC SPACE REQUIRED - 155" - 110", 393.7 cm - 279.4 cm 58" (147.3 CM) CHIP-PAC SCREEN - 6' x 6' (1.8 m x 1.8 m) with 2-hp (1.5 kW) hydraulic or electric drive
