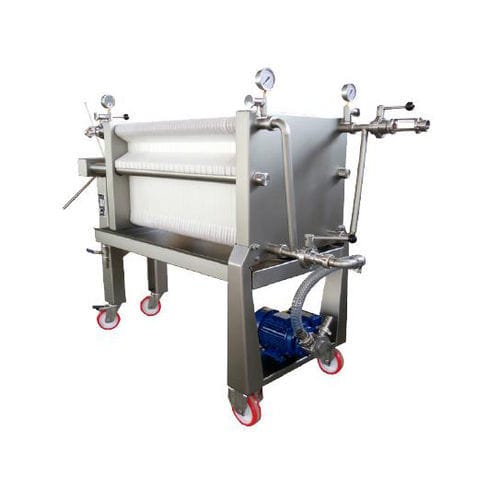

Wine filter EUR 40 - 50 - 60
for liquid food products and beveragesplatecentrifugal

wine filter
wine filter
wine filter
wine filter
Add to favorites
Compare this product


Characteristics

Designed for
for liquid food products and beverages, for wine
Filtration element
plate
Filtration method
centrifugal
Applications
for oenology
Other characteristics
horizontal
Flow

Min.: 650 l/h
(171.712 us gal/h)

Max.: 6,000 l/h
(1,585.032 us gal/h)

Description

The Eur plate filters are entirely designed and built in our workshop. Each welding is done with the internal robot and tested with leak tests. EUR 40×40 plate filters are designed to clarify and sterilize white and red wines, sparkling wines, olive oils, low-alcohol liqueurs and herbal products. They are equipped with inlet and outlet control valves, visual display on outlets, air purge taps and take samples of the filtered product. The plates mounted as standard on the filter are in Moplen; if you want to sterilize the filter the black talcoprene plates are available. STANDARD FITTINGS DIN 50 removable valves Horizontal sight glass on outlet OPTIONALS External input-output channels JESM8 Norly impeller centrifugal pump PH30 mono pump GG.20-GG.30 rubber impeller, coaxial pump
