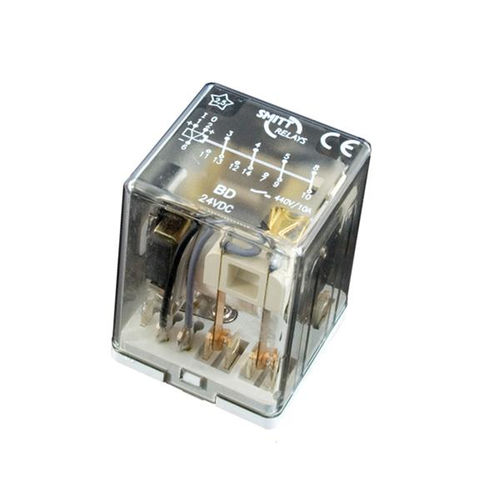

DC electromechanical relay BD series
powerplug-inbistable

DC electromechanical relay
DC electromechanical relay
Add to favorites
Compare this product


Characteristics

Control voltage
DC
Function
power
Terminal strip
plug-in
Other characteristics
bistable
Switching current

Min.: 10 mA

Max.: 16,000 mA

Description

Heavy duty latching relay / bistable relay for demanding applications. Equipped with magnetic latch (permanent magnet). Due to pulse activaton less heat dissipation and enrgy consumption than instantaneous relays. Plug in relay Smitt-style pinning 3 C/O + 1 N/C contacts Rated load 1 A /110 VDC1 , 10 A/230 VAC1 Coil voltages 12...220 VDC, 24...240 VAC AC & DC coil Continuous coil energization permitted Integrated 'snap-lock' retaining clip Dimensions 40 x 40 x 53 mm See the datasheet in the download section for all specification and options. See the accessories section for all suitable relay sockets and accessories.
