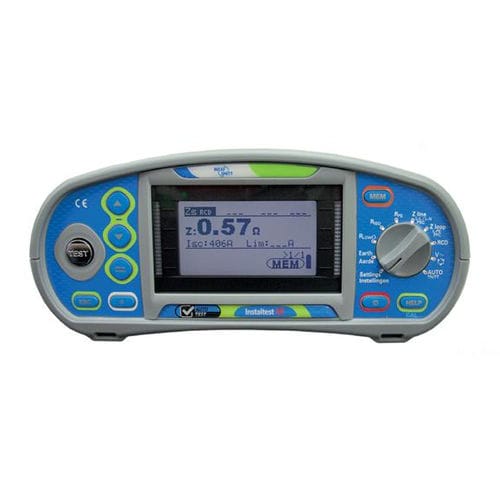

Insulation tester Instaltest XE

installation

The Instaltest XE is an easy to use and compact combination installation tester according to NEN 1010, NEN 3140 and EN 61557. The tester has a huge number of options, each driven by separate accessories. Using the rotary switch, the user can easily select a measurement, which is clearly displayed on the large LCD screen. Response time and tripping current of the RCD, impedance testing, rotary field and insulation resistance are just a small sample of the many possibilities. A clear True / False indication clarifies the test result. The measurements can be downloaded to the supplied software. Measurements Insulation resistance Continuity Contact voltage of the RCD Trip time of the RCD Automatic RCD test Trip current of the RCD Earthloop impedance without tripping RCD Phase rotation Earth resistance Line impedance (Z-line) Earthloop impedance (Z-loop) Voltage Earth resistance Including Manual Strap RS232 and USB cable Installing software Quick Guide Rechargeable batteries Charger Alligator Clips
