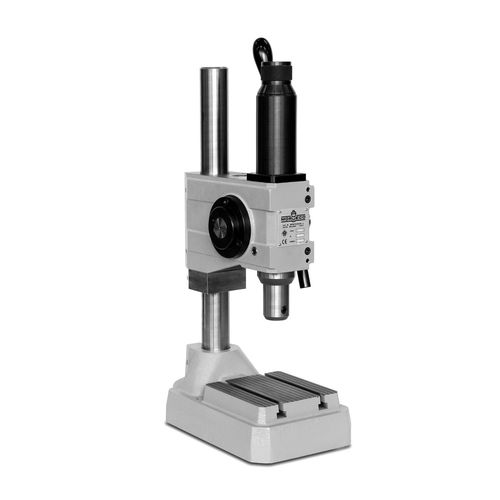

Hand-operated punching press P20Lpneumaticfor metal sheetscutting
Add to favorites
Compare this product
Characteristics
- Control
- hand-operated
- Drive type
- pneumatic
- Product handled
- for metal sheets
- Associated function
- cutting, forming, riveting, bending, insertion
Description
Our pneumatic and oleopneumatic presses with double effect are suitable for:
cutting- bending- riveting - deep drawing
punching - forming - bushing
Features common to all models:
stroke micrometer adjusting
descent speed adjusting
anti rotation tools holder stem
All models can be supplied in the following versions:
Full version:
base with two-hand control of simultaneity and with protections
vertical post for the light adjusting
regulator- lubricator filter
CE certification by IMQ
Unit version:
for automations or mounted on special machines
micrometric working stroke - mm. - 0÷62
port min and max - mm. - 10÷245
distance between centers - mm. - 145
work table - - mm. - 130x135
"T" slots - - mm. - 8x16
tool diameter - mm. - 16x30
total weight - - - kg. - 30
