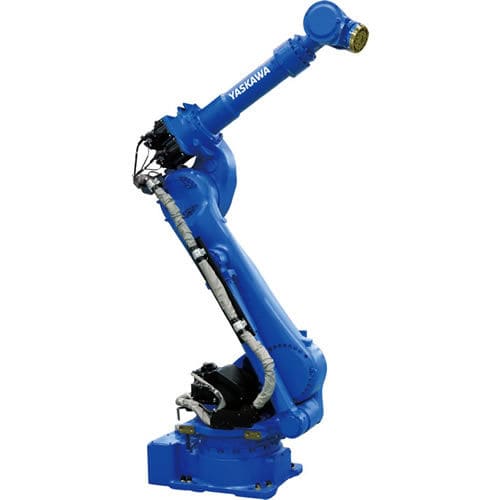

Articulated robot SP165
6-axisspot weldingfloor-mounted

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
spot welding
Mounting
floor-mounted
Other characteristics
compact, high-speed
Payload

165 kg
(363.763 lb)

Reach

2,702 mm, 3,393 mm
(106.38 in, 133.58 in)

Repeatability

0.05 mm
(0.002 in)

Weight

1,020 kg
(2,248.7 lb)

Description

Designed for exceptional spot welding performance, the SP165 robot offers fast axis speeds and acceleration capabilities to decrease air-cut time. An integrated spot harness improves robot wrist capability for reduced downtime, while servo gun and DC timer technology optimize quality and productivity. A wide wrist motion range improves application flexibility, and the slim robot profile enables reaching into tight areas and facilitates close placement of robots for high-density layouts.
