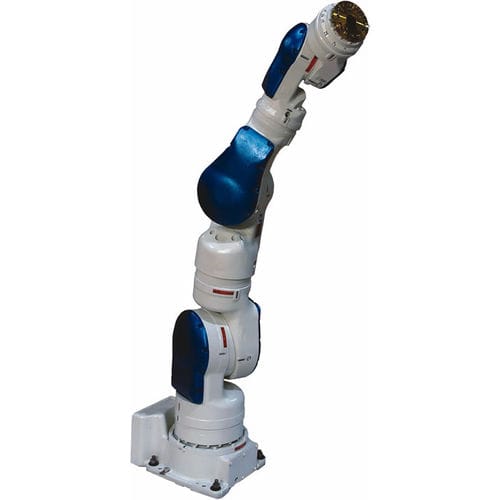

Articulated robot SIA10D
7-axisfor assemblytransfer

articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
7-axis
Function
for assembly, transfer, injection
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Other characteristics
compact
Payload

10 kg
(22.046 lb)

Reach

720 mm, 1,203 mm
(28.35 in, 47.36 in)

Repeatability

0.1 mm
(0.0039 in)

Description

Slim, 7-axis design optimizes space; provides “human-like” flexibility and range of motion, even in tight spaces. Mounts virtually anywhere in any orientation. Can be used in environments that are hazardous to humans Compact, Lean and Powerful Arm ■7-axis actuator-based design and best- bin-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas. ■Superior dexterity enables robot to reorient elbow(s) without affecting hand position or causing self-interference. ■Agile, versatile robot opens up a wide range of industrial applications to robots: ideal for assembly, injection molding, inspection, machine tending and a host of other operations. ■Slim, compact and powerful - robot can straighten vertically to take up only one square foot of floorspace and is only 254 mm (10.4") wide at widest point. ■ Short axis lengths and extreme motion flexibility allow slim manipulator to be positioned out of normal working area (i.e. floor-, ceiling-, wall-, incline- or machine- mounted) without limiting motion range of any axis. ■Mounting SIA10D robot between two machine tools provides open access to machines for fixture maintenance, adjustment or testing. ■Operator has clear access to machine operator station for entering offsets, maintenance or other operations.
