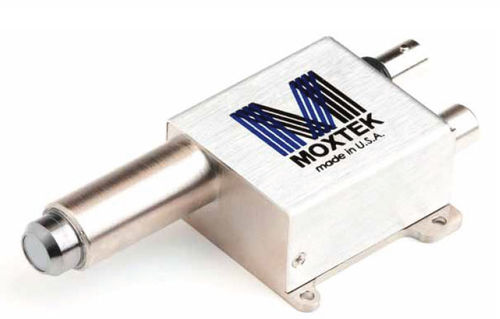

X-ray detector XPIN®-XT, XPIN®-BT

X-ray detector
X-ray detector
X-ray detector
Add to favorites
Compare this product


Characteristics

Detected entity
X-ray

Description

Our XPIN Detector has a 625µm thick Si-PIN diode, an ultra-low-noise JFET, multilayer collimator, preamplifier, and is internally cooled with a two-stage thermoelectric cooler. Our detectors use DuraBeryllium® windows uniquely coated with DuraCoat®, which is corrosion resistant and ideal for harsh environments. All Moxtek detectors are encapsulated in vacuum enabling minimum detector temperatures. The XPIN is available with a 6mm2 or 13mm2 active areas. The compact sizes allow for design flexibility. Features Maximized Si-PIN resolution High peak to background High energy absorption Close coupling of detector/ source, portable Easy to integrate Low power consumption Low calibration maintenance Lt-element identification, Corrosion resistant Minimal stray peaks Configurable Parameters Active area (6mm² or 13mm²) Configuration style (BT or XT) XT mounting options (Angle Bracket (AB) or Heat Sink (HS)) BT adapter plate Optional cables Thin (8µm) window options
