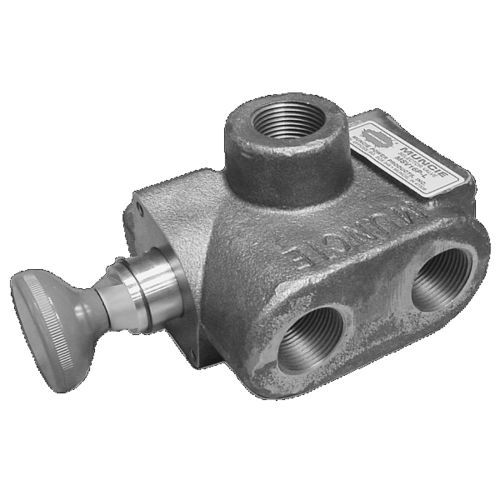

Spool hydraulic directional control valve MSV
lever-operated

spool hydraulic directional control valve
spool hydraulic directional control valve
spool hydraulic directional control valve
spool hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
lever-operated
Operating pressure

2,000 psi, 3,000 psi

Flow rate

60 us gal/min
(227 l/min)

Description

Muncie's MSV selector valve is well suited for a variety of applications. The two position two way valve provides a simple means of directing oil flow into two separate hydraulic circuits or can be used as a low pressure bypass back to the reservoir. A simple solution that is very cost effective Several actuation types are available to meet your application requirements Spool design allows one port to start to open and the other to begin to close when moved The valve has a high flow capacity with minimal restriction
