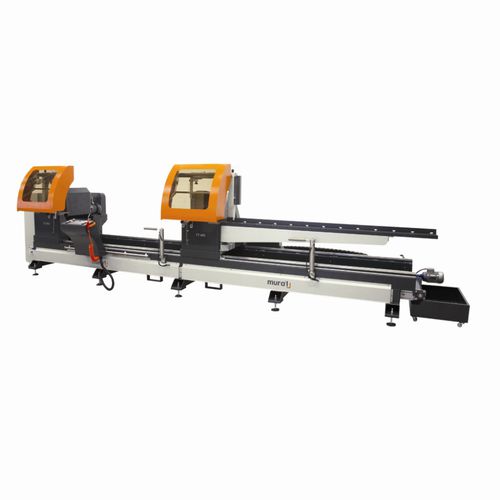

Circular sawing machine TT 450 PL

for PVC

For PVC profiles cutting Saw Heads which can cut inward or outward Angels between 45° - 90°/ 90° - 135° can be adjusted manually. Length, angle and cutting accuracy thanks to strong construction and linear bearing system 500 mm diameter saw blade enables accurate cutting of different sizes of Aluminium and PVC profiles More precise and serial cutting by tolerating failures which are caused by profile wideness with automatic profile measurement system during outward cutting process Can cut the maximum 4500mm profile Automatic positioning of the mobile head by means of PLC control system with Win CE Item number, length dimensions, angels and quantities can be programmed on the control panel (999 x 3: able to cut in 3 different programme) Data transfer by means of Network connection or USB Adjustable saw movement speed Continues where it left by switching among different cutting Profile support conveyor on mobile head balance the profile worked on In long-length profile cutting, Automatic support mechanisms which work between fixed and mobile head prevents the deflection and provides smooth and precise cutting Ease of use by ergonomic design Automatic closing safety hood to protect the employee Horizontal and vertical clamping system to ensure optimum profile fixing Optional: Chips are transported to the evacuation tank by automatic carrying belt during cutting process Able to cut the profile in desired length with Aluminium wedge cutting (min.: 4mm – max: 7.500mm) Dust and chips extraction system Machine can be produced 6.000 mm and 7.500 mm in length upon request Barcode Printer
