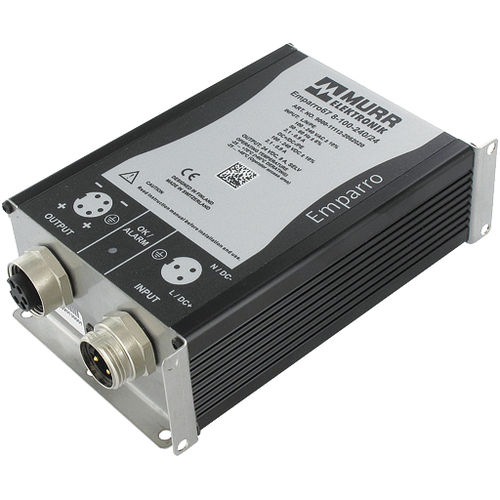

AC/DC power supply Emparro67 series
switchingclosed framewith power factor correction (PFC)

AC/DC power supply
AC/DC power supply
AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Technology
switching
Features
closed frame
Other characteristics
with power factor correction (PFC), robust
Input voltage

Min.: 90 V

Max.: 265 V

Output voltage

24 V

Description

INPUT: 90...265 V AC/90...265 V DC OUTPUT: 24 V DC (SELV), ±2% Current: 8 A GENERAL DATA Standards - IEC 61010-2-201, EN 61204-3, EN 55011 A, EN 61000-3-2 Mounting method - 6 hole screw mounting Temperature range - -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C) Relative humidity - 4...100% Protection - IP67 Efficiency - 93.5% (115 V AC); 94.2% (230 V AC) Dimensions H×W×D - 51×109×175 mm OUTPUT Output voltage - 24 V DC (SELV), ±2% Power Boost - Iout N × 150% (min. 4 s) LED display - LED (green): OK; LED (red): overload, overheating or short-circuit Connection - 7/8" (female), 5-pole Output current - 8 A Mains failure bridging time - min. 35 ms (230 V AC); 8 A (24 V DC) Ripple - max. 30 mV eff/rms Spikes - max. 300 mV ss/pp Unit protection - Short-circuit, overload and temperature Parallel usage/serial usage - max. 3 units/max. 2 units INPUT Input voltage - 90...265 V AC/90...265 V DC Connection - 7/8" (male), 3-pole Input current - 2.1 A (100 V AC); 0.9 A (240 V AC) Inrush current after 1 ms - max. 7 A (230 V AC) Power factor - 0.95 (230 V AC) Frequency - 50...60 Hz Input fuse (internal) - 6.3 A (T) Product article number of manufacturer - 9000-11112-2062020
