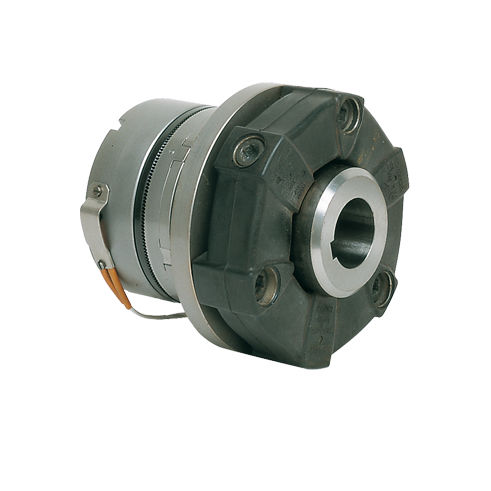

Toothed clutch ESBG/Z electromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- toothed
- Operation
- electromagnetic
- Torque
Max.: 12,000 Nm
(8,850.7458 ft.lb)Min.: 20 Nm
(14.7512 ft.lb)- Rotational speed
Max.: 8,500 rpm
(53,407.08 rad.min-1)Min.: 1,300 rpm
(8,168.14 rad.min-1)- Power
Max.: 360 W
Min.: 10 W
Description
Power supply voltage: 24V cc. – 0% + 15%.
Used only for dry applications.
Guarantees quick, simple assembly between two shafts, one fixed to the flexible coupling (16) and the other onto the hub (8).
Necessary for recovering alignment between two opposite shafts.
The flexibility angles in radial, angular and axial direction are specified according to the sizes.
Catalogs
Electromagnetic clucthes and brakes
162 Pages
