Carousel independent arm roto-molding machine, 5 stations

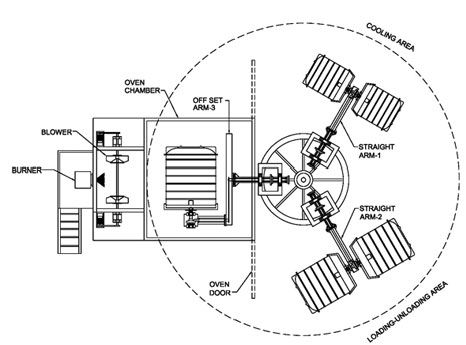

Naroto three arm machine is mainly used in application where the process time for each arm require equal like one heating chamber one cooling chamber and one load/unload area. Also available in different application like Four station where one heating,one precooling, one cooling and one loding/unloding area. Four station where one pre heating,one heating, one coolling, and one loading/unloading area. Four station where one heating chamber, one cooling chamber, two load/unload area.
Special design heating chamber for energy efficient heat transfer to the moulds for fast and short cycle time
Insulation material for better working environment.
Straight arm with two spacious spiders (optional) to accommodate different size moulds for convenient working.
Straight arm with four mould individual carreir for uniform thickness.
Provision for second/third charging manhole on the top of oven for charging polymer without opening the oven doors.
Oven controls are equipped with necessary interlocking and safety devices with alarm
Micro processor based machine control panel with digital display (plc on request)
Enclosed cooling chamber with high performance industrial cooling fan.
Variable speed a/c drive for major and minor speed.
Mould positioning and balancing facility inbuilt
Range available from 60 to 237 inches (1.5 to 6 mtr.) With multi arm as per custom requirement.
Environment friendly burner suitable for lpg/cng/oil/duel fuels.
