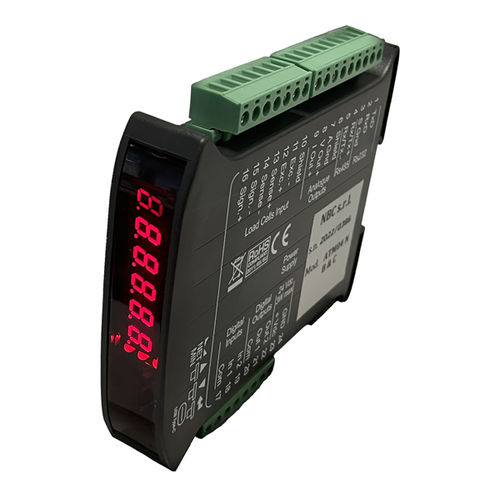

Digital load cell transmitter ATM 04 ANA

Digital transmitter for analogic load cell EXCITATION 24 Vdc +-10% protected against reversepolarity. MEASUREMENT RANGE From -2.6 mV/V to +2.6 mV/V CONNECTIONS Removable screw terminal blocks, 5.08 mm pitch OVERALL DIMENSIONS 110 x 120 x 23 mm (l x h x p) terminal blocks included PROTECTION DEGREE IP00 HOUSING MATERIAL Blend PC/ABS self-extinguishing MOUNTING Support for DIN rail or OMEGA bar ATM04 ANA is a load cells digital amplifier with analogic output (Voltage / current), with a 7 red segments and 5 digits 7mm high led display, keyboard with 3 mechanical buttons, with 2 digital outputs (relè 1A max), with 2 digital inputs optically isolated and with integrated communication interfaces RS232.
