EXCITATION
24 Vcc ± 15 %
MEASUREMENT RANGE
From -3.9 mV/V to +3.9 mV/V
CONNECTIONS
Removable screw terminal blocks, 5.08 mm pitch
OVERALL DIMENSIONS
106mm x 60mm x110mm (l x h x p)
PROTECTION DEGREE
IP54
HOUSING MATERIAL
PPO self-extinguishing
MOUNTING
DIN rail (EN 60715) DIN 43880 or OMEGA bar

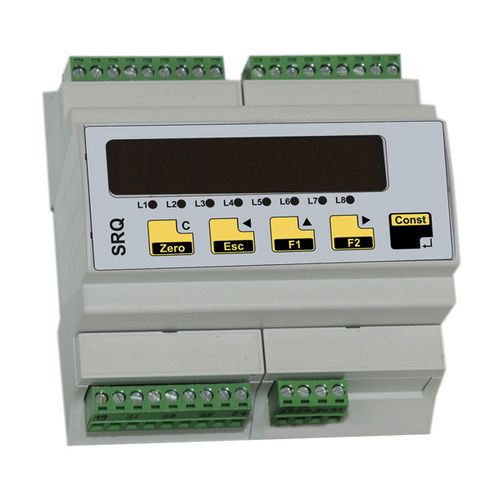

SRQ is a digital transmitter for load cells, with indication of the meausure by 6 digits display. SRQ is equipped with 4 digital outputs and 3 digital inputs and peak function. Programming and calibration is carried out with the 5 keys membrane keyboard and with the 7 segment LED display (14mm height) and 8 LED indication. It supports various communication protocols on ports Rs232 and Rs485 and can be equipped with 16-bit isolated analog output in current or voltage.
