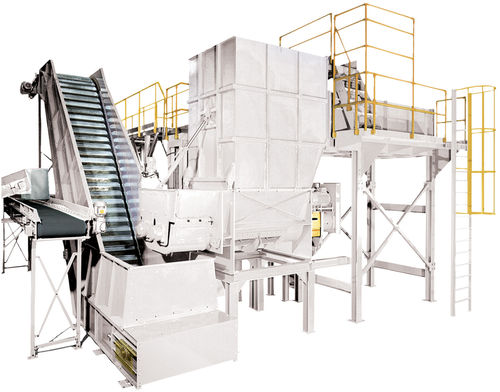

Double-shaft shredder / wood / solid & bulk waste / rugged
1 600 x 1 600 mm | SB 560/2 NEUE HERBOLD Maschinen-u. Anlagenbau GmbH

Characteristics

  • Number of shafts:

    double-shaft

  • Application:

    wood, solid & bulk waste

  • Other characteristics:

    rugged, primary

Description

Neue Herbold SB screw shredder / bale breaker is highly regarded for its two fold main function. Thanks to its heavy duty design, the shredder can be used in the size reduction of voluminous materials, wooden pallets, cable drums, sheets of insulation and porous building blocks. Users can enjoy a cluster free break down of PET baled bottles while requiring PET bottle size reduction. The bale breakdown is extremely efficient making the downstream bottle separation process quite effective and precise. The design entails intelligent operation with screw shaped shafts for installed for parallel operation. The bearing mounted shafts are protected from contamination such as sand and dirt by their placement in a chamber channel equipped in the lower channel area which has a screened surface. Size reduction and material breakdown occurs through the rotor shaft flights and counter teeth meshing at the discharge site.
