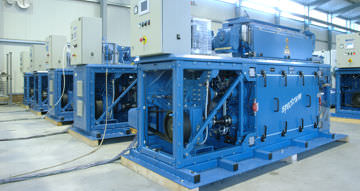

The chemical grinder WMC allows a size reduction with a narrow particle size distribution, without dust. The narrow particle spectrum is achieved by a continuous pressure-shear stress between two corrugated rolls and a defined roll gap.
Roller grinding mills WMC crush soft, brittle to tough-hard products, e.g:
• Superabsorbents
• Urea
• Polyacrylate
• Calcium sulphate
• Pectin
• Ammonium bicarbonate -
• Polymer
• Potash
• Phenoplastics
• Ammonium nitrate
• Tablet breakage
• Electronic scrap
•
Product feed/ Dosing
• Uniform feeding over the entire roll length is ensured by a roll metering device or alternatively by a vibrating conveyor trough.
• Power infinitely variable
• Viewing window for control of the product flow
• Dust-tight
Grinder sections
• Main drive via V-belt and spur gear
• Roller drive via constant velocity drive shafts
• Product-specific corrugated rollers
• Servo motors for roll gap adjustment
• Disengaging of the rolls in case of external passage and readjustment of the required roll gap
• Quick release of the rollers
• Interchangeable drive modules. Drive power up to 30 kW per section depending on requirements
• Smooth interior surfaces
• Dust proof
Design and options
• All parts in contact with the product are made of stainless steel, material no. 1.4571
• Electrical switch cabinet with visualization
• Explosion protection version
• high Cr-alloyed rolls
• Cooling rollers
• Potential equalisation against static charge
• Contact-free roll sealing
• Aspiration connection
• Connection for inert gas supply
• Permanent magnet above the rollers
• Technically gastight design
