3-axis machining center / horizontal
HE series NEWAY CNC EQUIPMENT (SUZHOU) CO., LTD

Add to MyDirectIndustry favorites

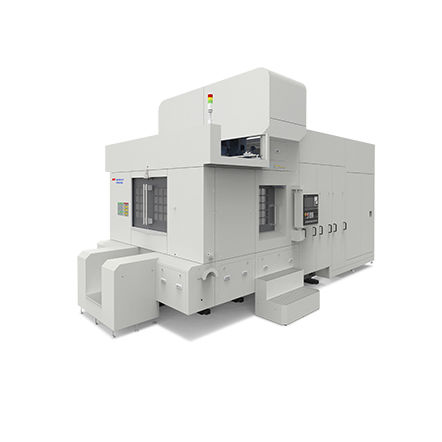

3-axis machining center / horizontal 3-axis machining center / horizontal - HE series
{{requestButtons}}

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    horizontal

  • X travel:

    900 mm

  • Y travel:

    750 mm

  • Z travel:

    900 mm

  • Rotational speed:

    Max.: 12,000 rpm (75,398 rad.min-1)

    Min.: 20 rpm (126 rad.min-1)

  • Power:

    Max.: 65 kW (88.38 hp)

    Min.: 22 kW (29.91 hp)

Description

item

unit

HE63S

HE63D

HE80F

HE100A

X axis travel

mm

900

900

900

900

Y axis travel

mm

750

750

750

750

Z axis travel

mm

900

900

900

900

worktable size

mm

630×630

630×630

ф800

1000×500

max load

kg

1200

1200*2

500

500

max work piece size

mm

ф1000×1000

ф1000×1000

ф1000×600

ф1000×600

min indexing of axis A



/

/

0.001

0.001

min indexing of axis B

°

0.001

0.001

0.001

/

APC duration

S

/

20

/

/

spindle speed

rpm

20~6000【2000-12000】【20-8000】

20~6000【2000-12000】【20-8000】

20~6000【2000-12000】【20-8000】

20~6000【2000-12000】【20-8000】

spindle taper



HSK-100A

HSK-100A

HSK-100A

HSK-100A

spindle motor

kw

22/33【25-44】【50-65】

22/33【25-44】【50-65】

22/33【25-44】【50-65】

22/33【25-44】【50-65】

spindle torque

Nm

770/1155【160/280】 【403-526】

770/1155【160/280】 【403-526】

770/1155【160/280】 【403-526】

770/1155【160/280】 【403-526】

rapid traverse(X/Y/Z)

m/min

80

80

80

80

cutting feed speed(X/Y/Z)

mm/min

1~12000

1~12000

1~12000

1~12000

min setting unit

mm

0.001

0.001

0.001

0.001

number of tools



40

40

40

40

tool shank



HSK-100A
