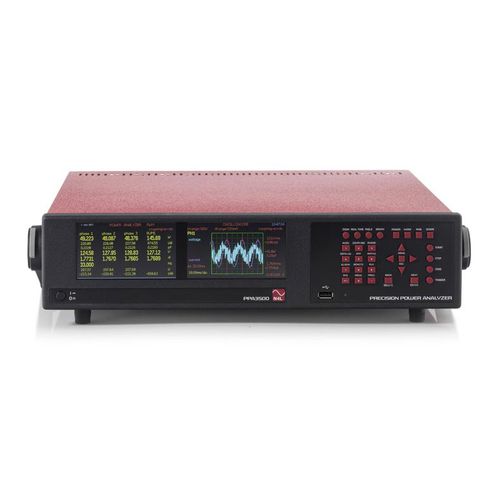

Power analyzer PPA3500

power factorbenchtopcompact

High Performance 6 Phase Power Analysis The PPA3500 is a high accuracy 3~6 phase power analyzer able to perform reliable, accurate power analysis in a variety of applications. As a result of innovative analogue card design, the PPA3500 is packaged in a compact 2U chassis. The PPA3500 is available in 3, 4, 5 or 6 phase configurations. There is also the option to install the unit in a 19in rack providing a 2U 6 Phase solution, see our accessories page for more details. The PPA3500 power analyzer benefits from a full color “Dual” TFT display, this concept employs two TFT displays within one instrument, allowing for a large widescreen display area in a 2U form factor. Why choose a Newtons4th Power Analyzer? oOnly Power Analyzer in market designed specifically for inverter drive applications oBest Wideband Power Accuracy in class o1MHz Bandwidth oExtremely high accuracy phase measurement of 0.01deg oISO17025 (UKAS) traceable certification supplied oLow profile – 2U High, up to 6 Phase measurement oUnrivaled product support oPWM Motor drive mode for quick easy setup All required inputs included as Standard The PPA3500 includes all ports fitted as standard including Internal(4mm) and External(BNC), Torque, Speed, RS232, LAN, USB, GPIB. Example Applications oPWM Inverter Drive Efficiency Analysis oStandby Power oAC/DC Converters oSolar Arrays oUPS oPower Quality oHigh Frequency Power Electronics
