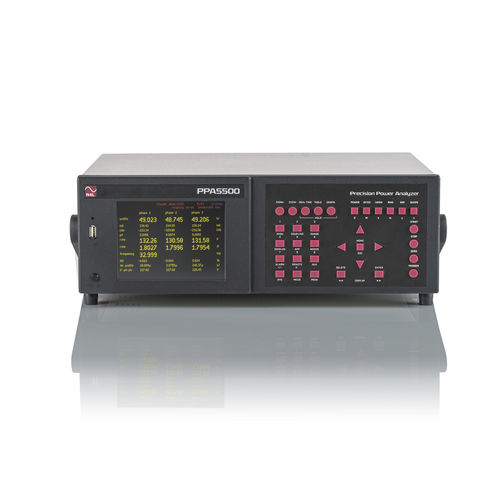

Power analyzer PPA55x1 series

harmonicbenchtop

IEC61000 Harmonics and Flicker Analyzer – Compliant, Proven and available with UKAS ISO17025 Certification The PPA55x1 series precision power analyzer provides a fully compliant test and measurement solution to meet the latest IEC61000 Harmonics and Flicker international test standards. The instrument offers both standalone and software driven test ability, giving the user the option to obtain pass/fail results on the instrument with no requirement for a PC. Alternatively IECSoft can be used, this offers the user an intuitive and highly sophisticated reporting and analysis platform. If coverage of the IEC61000-4-11 and IEC61000-4-13 immunity test standards is also required, N4L’s EMC Test Systems offer compliance to these standards alongside IEC61000-3-2/3 and IEC61000-3-11/12. Example EMC test system configurations are illustrated in the table below. IECSoft provides the user with the ability to quickly and easily determine failure modes of any DUT, in the past harmonics and flicker test software has provided reporting with little real time ”in-test” analysis of results. IECSoft bucks the trend and offers an easy to interpret user interface, this includes a sophisticated harmonics real time graph display giving analogue representation of data in order to provide the user with a “feel” for the performance of the DUT throughout a test. This is achieved through a carefully designed user interface, for fluctuating harmonics this includes POHC% of limit representation, colour coded Real Time, Average, Fail Average, Fail Max, STL Exception, POHC Exception bar graphs and individual real time harmonic analysis.
