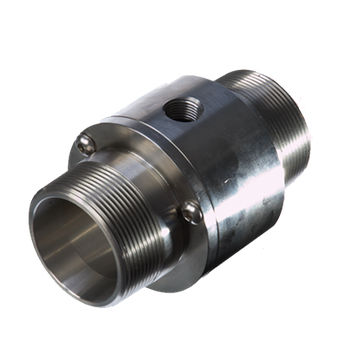

Pneumatic conveyor X-Stream™ Ring-Vac™

airhorizontalcompact

X-Stream™ Ring-Vac™ Heavy Duty Pneumatic Conveying System is Available in standard and threaded versions for heavy duty applications. These systems are designed for conveying materials over a longer distance both vertically and horizontally. They move 50% more volume while conveying much further. They are made of hard anodized aluminum to prevent premature wear that could occur with either an ordinary anodized aluminum or Stainless Steel Ring-Vac™. Many applications require transport over longer distances than is capable with the standard units. The X-Stream™ Ring-Vac™ Heavy Duty Pneumatic Conveying products have been designed for these rugged and demanding industrial applications. These heavy duty products are available in standard clamp on versions and threaded versions in 1”, 1-1/4”, 1-1/2” and 2” sizes. The threaded units can be threaded into ordinary pipe to make a convenient and powerful system to convey parts, trim, scrap, and other materials. When part wear is a concern, these systems are ideal and low cost. One application that is ideal for the X-Stream™ Ring-Vac™ is conveying abrasive or sharp parts such as chips from a machining center. This improves production by removing the chips as they are created in the machining operation, minimizing downtime for cleanup and conveying the scrap into a nearby bin for recycling or disposal. Because all Ring-Vac™ products are compact and lightweight, they are easy to install and portable. Always make sure the compressed air supply is properly filtered to keep the compressed air clean.
