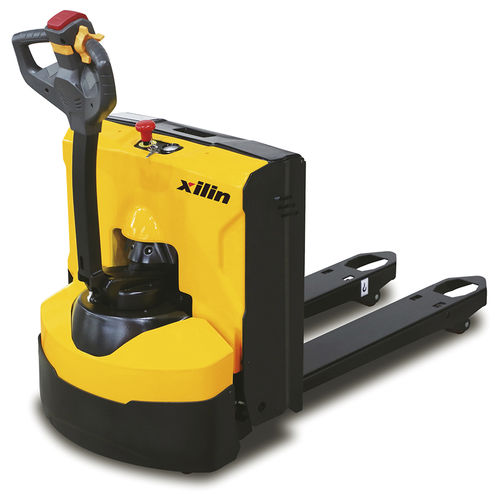

Electric pallet truck CBD18KD

walk-behindmultifunctionlow-profile

The super light Walkie type CBD20K(D) (2000kg/4400lbs) with small turning radius and low profile chassis, widely used in Narrow Space like small super market and workshop. Advantages: SAFETY AND PRODUCTIVITY: • Advanced AC control system eliminating the motor brushes and directional contactors, which makes the minimal maintenance requirements. Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals. • Side-way battery with roll-out system is very convenient to replace batteries. • Emergency reversing device. • Built-in pressure relief valve protects the trucks from overloads. • Long handle tube gives flexible and laborsaving operation. • Emergency power disconnect. • Low speed switch in the handle. • Stepless speed control. STRUCTURAL: • Vertical driving wheel offers small turning radius. The structure is water-proof and dust-proof. • The riser axle located at the highest point of forks, which protect riser axles from constant contact from uneven floors. Pull rod design protect the rod from bending. • Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life. • One-piece heavy gauge steel is formed for maximum strength forks. SERVICEABILITY: • Low battery protection setting prolongs the battery use time. • CANbus technology reduces wiring complexity and increases reliability. • All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
