under-voltage circuit breaker / low-voltage / AC / molded case
TANM1/TANM2 series Ningbo Tianan (Group) CO.,Ltd.

{{requestButtons}}

Characteristics

  • Electrical characteristics:

    under-voltage, low-voltage, AC

  • Other characteristics:

    molded case

  • Applications:

    motor protection

  • Current:

    Max.: 225 A

    Min.: 10 A

  • VAC:

    Max.: 690 V

    Min.: 400 V

Description

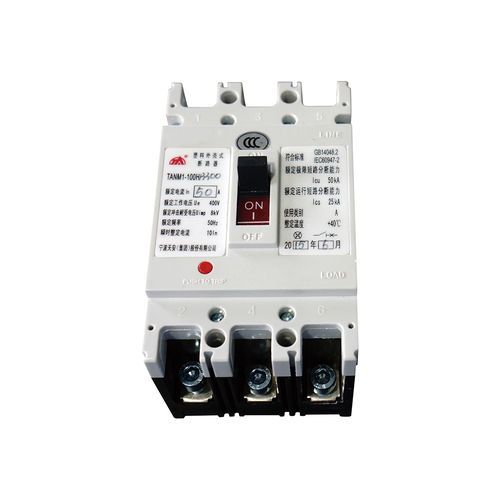

TANM1/TANM2 series moulded case circuit breaker (hereinafter referred to as circuit breaker) is suitable in a circuit with AC 50Hz (or 60Hz), rated operating voltage 660 (690V) or below, rated current to 800A, for less frequent transformer, and also can be used for motor protection and less frequent start. The circuit breaker has over load, short circuit and under voltage protection device, which can protect the circuit and power supply from damage.
