Thermal protection sleeve
flatfor cablesmetal

thermal protection sleeve
thermal protection sleeve
Add to favorites
Compare this product


Characteristics

Type
thermal protection
Structure
flat
Applications
for cables
Material
metal
Temperature

Min.: 260 °C
(500 °F)

Max.: 1,500 °C
(2,732 °F)

Description

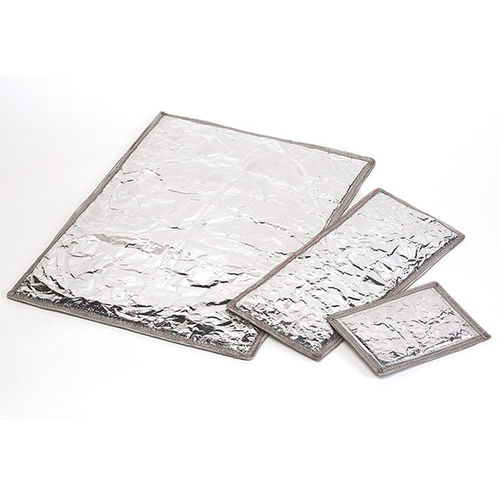

BSTFLEX Thermaflect Heat Shield is one of the high integrity thermal production products. This product is basically a high quality reflective shield that offers a shielding of up to 90% of radiant heat. The series houses several other varieties like floor board heat shield, firewall heat shield, air box heat shield, muffler heat shield, diesel particulate filter heat shield, catalytic converter heat shield, electrical box heat shield and air conditioning component heat shield. This heat shield can with stand up to 1100 degree F of continuous radiance and 500 degree F of direct contact. It offers an excellent flexibility with 1/4 inch thick ceramic inner pad, heavy duty foil exterior and mesh bounded edges. The ceramic inner pad is sandwiched between heavy duty foil and bound together with a stainless steel mesh at the edges there by offering a better rugged shield. It can be used as an excellent exhaust heat shield, engine heat shield, for wrapping around air boxes, air conditioning components, catalytic converter, muffler, floor heat shield. They can be additionally fastened with thermal ties, safety wire, rivets.
