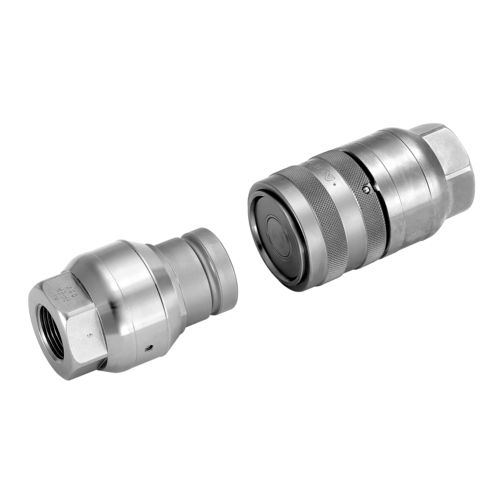

Hydraulic fitting Cupla FF
push-to-locksocketsteel

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
push-to-lock, socket
Material
steel
Gender
female
Other characteristics
high-pressure, high-flow, with shut-off valve, poppet
Diameter

0.38 in, 0.5 in, 0.75 in, 1 in

Operating pressure

350 bar
(5,076.32 psi)

Description

1.5 ~ 2 Times Higher Flow. High flow type with "airless valve shut-off" design. • Compared with Nitto’s conventional 35MPa Cuplas, the flow volume is increased 1.5 to 2 times. *Increase ratio of each flow volume depends on the Cupla size. • "Airless valve shut-off" design minimizes spillage volume on disconnection and admixture volume of air on connection. • Best suited for hydraulic lines with drastic high pressure pulsation such as in die-casting machines. • Push-to-connect operation and sleeve stopper design preventing accidental disconnection under vibration or impacts enhances workability and safety. • Sizes are Rc 3/8, Rc 1/2, Rc 3/4, and Rc 1. *Only the same size of socket and plug can be connected. Specifications Applicable Fluids: Hydraulic Oil Working Pressure: 350 bar Valve Structure: Two-way shut-off Body Material: Steel Seal Material: NBR Size: 3/8" / 1/2" / 3/4" / 1"
