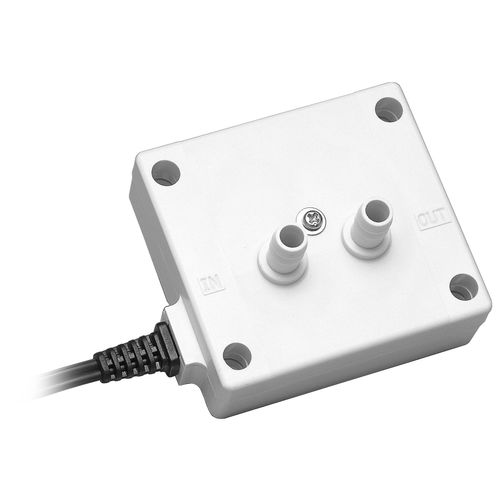

Piezoelectric pump BIMOR BPH 230V series
acidalcoholfor alkalis

piezoelectric pump
piezoelectric pump
Add to favorites
Compare this product


Characteristics

Fluid
acid, alcohol, for alkalis, for bases, for solvents, lubricating oil, water
Operation
piezoelectric
Priming
self-priming
Technology
diaphragm
Mobility
stationary
Domain
for the chemical industry
Material
PP
Fluid specification
for aggressive media
Voltage
230 V
Other characteristics
small
Flow

0.2 l/min, 0.25 l/min
(0.05283 us gal/min, 0.06604 us gal/min)

Pressure

170 mbar, 180 mbar, 350 mbar
(2.466 psi, 2.611 psi, 5.076 psi)

Weight

140 g
(4.94 oz)

Description

The Bimor’s driving force, the bimorph, comprises two parallel piezoelectric wafers. Their nature is to expand or contract depending on the direction of the voltage. Therefore, when an alternating current is applied, one wafer expands then contracts while the other contracts then expands, causing the biomorph to bend. Repeating the cycle creates a pumping action, as the diagram below shows.
