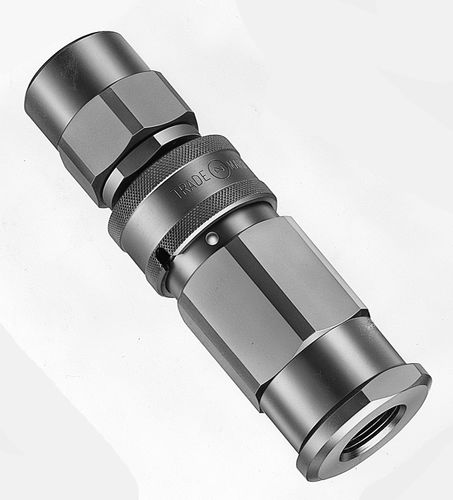

Hydraulic fitting 350 Cupla push-insteelfemale
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- push-in
- Material
- steel
- Gender
- female
- Other characteristics
- high-pressure, with shut-off valve, poppet
- Diameter
Max.: 2 in
Min.: 0.25 in
- Operating pressure
345 bar
(5,003.8 psi)
Description
Their “airless valve shut-off design” greatly reduces air admixture! Ideal for hydraulic lines with larger pressure fluctuations.
• Locking mechanism to prevent accidental disconnection maintains tight connection even under vibration or impact.
• Both socket and plug have built-in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle.
Specifications
Applicable Fluids: Hydraulic Oil
Working Pressure: 345 bar
Valve Structure: Two-way shut-off
Body Material: Steel
Seal Material: FKM / NBR
Size: 1/4" / 3/8" / 1/2" / 3/4" / 1" / 1 1/4" / 1 1/2" / 2"
