Hydraulic fitting MAM-A
pneumaticquickbrass

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic, pneumatic
Attachment
quick
Material
brass
Other characteristics
sealed, multi-port, with shut-off valve
Diameter

0.25 in, 0.38 in, 0.5 in

Operating pressure

10 bar
(145.04 psi)

Description

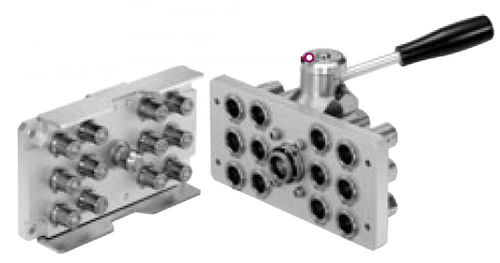

The Multi Cupla Mam-A Type is a coupling designed for quick and simultaneous connection of several ports all at once with an easy manual lever action. An integrated lock mechanism, as well as a two-stage lever action, prevents accidental disconnection or detachment. The flow of this quick connectors is comparable to that of the SP Cupla Type A. To eliminate leaks, it has automatic shut-off valves and the individual sockets or plugs are safely sealed, thanks to the self-aligned design of the valves. Each size comes with two plate types.
