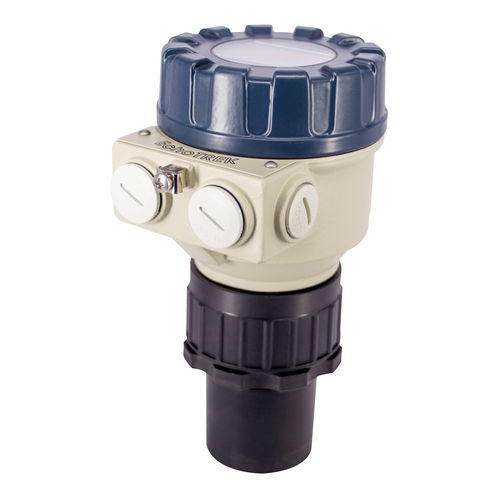

Compact level transmitter EchoTREK ultrasonicfor liquidsHART
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Medium
- for liquids
- Interface
- HART, 4-20 mA, 2-wire
- Applications
- for storage tanks, for the food and beverage industry, for industrial applications
- Other characteristics
- stainless steel, compact, explosion-proof, ATEX, temperature-compensated, IP67
- Level range
Max.: 25 m
(82'00" )Min.: 0.2 m
(0'07" )- Process pressure
Max.: 3 bar
(43.51 psi)Min.: 0.5 bar
(7.25 psi)- Process temperature
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)
Description
Product properties
- 2- or 4-wire integrated transmitter
- Non-contact level metering
- Narrow 5° beam angle
- Excellent signal processing
- Temperature compensated
- Secondary lightning protection
- 32-point linearisation
- PP, PVDF, PTFE housing and transducers
- Plug-in display module
- Plastic, aluminium or stainless steel housing
- Explosion-proof models
- Level and volume measurement and display
- Open channel flow measurement
- Fail-safe indication
- For challenging applications such as
- vapour / fume stirrer and foam with liquids
Applications
- Level measurement of liquids and slurries
- Agriculture
- Construction materials
- Chemical industry
- Food and beverage
- Oil industry
- Paper mill
- Water / wastewater industry
