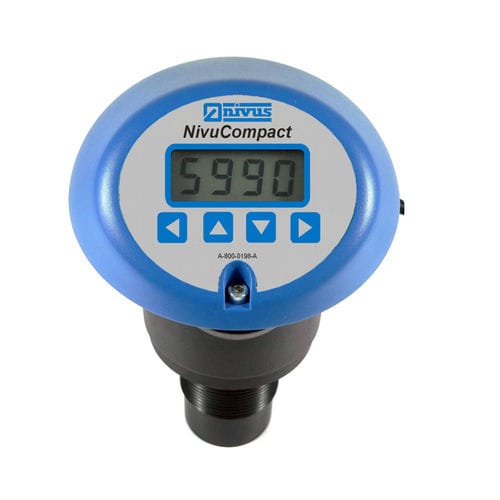

Ultrasonic level sensor NivuCompact

for liquids2-wiredigital output

Ultrasonic compact echo sounder in 2- and 3-wire version for non-contact measurement of distance, level, empty space or volume. Parameters can be set directly on site without the need to open the enclosure. -Combi unit with sensor and transmitter -Measurement range from 0.2 to 10 m -Digital echo processing and linearisation -Ideal even for battery operation thanks to very short startup and measurement times -View echo profiles on PC -Unit can be programmed on sit without opening the enclosure -Integrated temperature compensation -ATEX Approval for Ex-Zone 1 The NivuCompact is a compact echo sounder for non-contact ultrasonic measurement of level, distance, space or volume. NivuCompact can be used wherever reliable non-contact level measurement is required. Thanks to its very quick startup time of 4 seconds until value output, the NivuCompact is particularly suitable for battery-powered logger operation. High transducer power and tight beam angle in addition with digital echo pro-cessing make the NivuCompact an ideal tool for many "difficult" applications. The integrated display makes programming extremely simple. The NivuCompact is available as 2- or 3-wire version in one unit. Typical Applications -Wastewater: screening plants, flow control sections in stormwater treatment plants, volume measurements in tanks such as precipitants and similar, irrigation plants -Drinking water: tank level measurements, water treatment -Power generation: cooling water circuits, hydropower plants -Industry: liquid level measurement in tanks and containers
