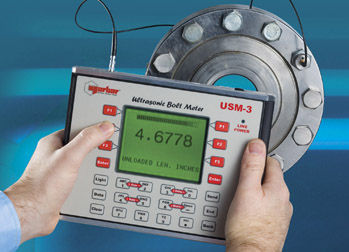

Ultrasonic bolt stress measurement device
USM - 3
Norbar Torque Tools
Large ¼ VGA back lit display is easily visible from a distance and in poor light.
Can store up to 4000 bolts, 20,000 elongation and load readings.
Rugged steel and aluminium case designed for production, field and construction environments.
Measures fasteners of virtually any material from ½ inch (12mm) to over 50 feet (15m) in length.
0 - 10V analogue output for control of tightening tools such as a Norbar Pneutorque® multiplier.
Fast update speeds.
Measurement modes of pitch-catch and pulse-echo.
Unit can be operated with mains power supply (96 to 264 Volts) or via 4 'C' call batteries.
Sealed membrane keypad with tactile keys.
Works with magnetic and glue on transducers from 1 MHz to 10 MHz.
Can store up to 4000 bolts, 20,000 elongation and load readings.
Rugged steel and aluminium case designed for production, field and construction environments.
Measures fasteners of virtually any material from ½ inch (12mm) to over 50 feet (15m) in length.
0 - 10V analogue output for control of tightening tools such as a Norbar Pneutorque® multiplier.
Fast update speeds.
Measurement modes of pitch-catch and pulse-echo.
Unit can be operated with mains power supply (96 to 264 Volts) or via 4 'C' call batteries.
Sealed membrane keypad with tactile keys.
Works with magnetic and glue on transducers from 1 MHz to 10 MHz.
