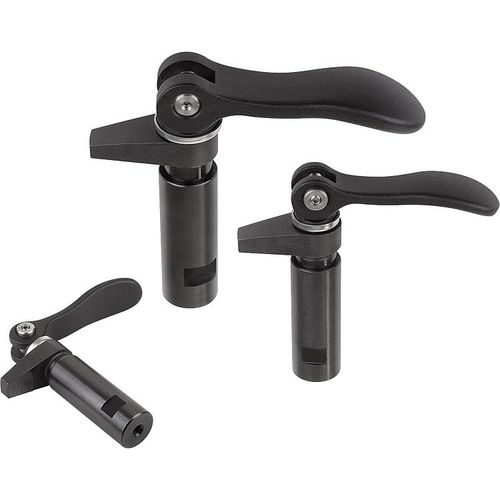

Cam lever 04371

Hook clamps with collar and cam lever Material: Body and hook clamp, carbon steel. Handles, cast aluminium EN AC-46200. Thrust washer, plastic PA 66 GF 35-X, fibreglass reinforced. Hinge pin, stud and washer stainless steel 1.4305. Version: Basic body and hook clamp tempered and black oxidised. Handles, black powder-coated. Thrust washer black. Hinge pin, stud and washer bright. Note: Ideal for clamps in which the parts are to be inserted from the top, as the hook clamps for inserting and removing the workpiece can be swivelled. The exact clamping height is set by the fine thread on the stud using a screwdriver. This setting can be secured with the locking screw. The length S corresponds to the cam travel. Drawing reference: 1) Locking screw for pin 2) Screw for fine adjustment of lever
