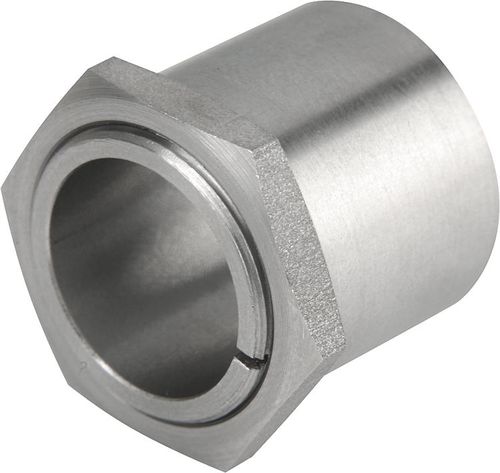

Stainless steel shrink disc 23370

Shaft-hub clamping sets stainless steel Material: Stainless steel 1.4301. Version: Bright. Note: Self-centring and play-free shaft/hub clamping sets with a very low moment of inertia and minimal space requirement. The clamping sets produce a friction connection between shaft and hub. Central nut for quick mounting. After the nut is loosened, the set can be removed with a puller tool. Clamping set concentricity ±0.01 mm. Assembly: To achieve the specified torque, the clamping set must be installed grease-free. The entire length of the clamping set must be in contact with the shaft. For maximum torque the shaft and hub must be sufficiently firm (min. yield strength 350 N/mm²). Required tolerances: Shaft: h7 Hub: H7
